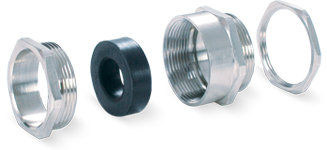

PG Cable Glands with IP-65 Protection
|
Size
|
PG 7 to PG 48
|
|
Standard
|
EN 50262 : 1999
|
|
Application
|
Outdoor or Indoor for use with all types of Unarmoured
Cable
|
|
Function
|
Provide Seal on Outer Sheath of the Unarmoured Cable
|
|
Ingress Protection
|
IP65
|
|
Material
|
Brass BS 2874 CZ121 Pb3
|
|
Finish
|
Chrome Finish, Brass Finish, Nickel Finish or as
specified
|
|
Thread
|
PG and also available in Metric Threads on request
|
|
Seals
|
Neoprene Material
|
|
Operating Temp.
|
-200 C to +800 C
|
|
Accessories
|
Matching Accessories available like PVC Shrouds, Lock
Nuts, Earth Tags, Reducers, Adaptors, etc. as per the requirement
|
Technical Data:
|
Size
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
|
PG-7
|
14.00
|
15.50
|
20.50
|
PG-7
|
10.00
|
5.00
|
150
|
|
PG-9
|
18.00
|
20.00
|
23.50
|
PG-9
|
12.50
|
6.00
|
150
|
|
PG-11
|
20.00
|
22.00
|
26.50
|
PG-11
|
15.00
|
6.50
|
150
|
|
PG-13
|
23.00
|
25.00
|
27.00
|
PG-13
|
16.75
|
7.10
|
150
|
|
PG-16
|
25.00
|
27.80
|
28.00
|
PG-16
|
18.50
|
6.50
|
150
|
|
PG-21
|
31.00
|
34.00
|
31.00
|
PG-21
|
24.10
|
7.10
|
150
|
|
PG-29
|
41.50
|
45.20
|
34.00
|
PG-29
|
32.10
|
8.50
|
150
|
|
PG-36
|
51.00
|
56.50
|
40.00
|
PG-36
|
43.00
|
10.00
|
150
|
|
PG-42
|
58.50
|
63.75
|
43.00
|
PG-42
|
47.50
|
10.00
|
150
|
|
PG-48
|
64.00
|
70.50
|
47.00
|
PG-48
|
52.25
|
10.00
|
150
|
Also available in Kit Packaging and also as per the specification.
|
