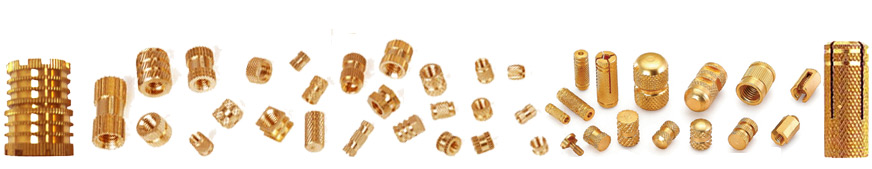

Brass Insert
We have carved a niche for ourselves in the market
with our optimum quality brass moulding inserts. Applicable in various
industries such as instrumentation, telecommunication, auto parts,
etc., these products are available in the market in various knurlings
such as diamond, straight and unidirectional. Timely delivery of
quality products has set us apart from the rest. Today, we are renowned
as one of the leading brass inserts and brass threaded inserts
manufacturers and suppliers based in India. The entire range is
available at the most competitive market prices.
Classification
- Brass Round Knurled Inserts.
- Brass Square Inserts.
- Brass Hexagonal Inserts.
- Brass Insert for Ultrasonic Range.
- Brass Insert for Heatbit Range.
- Brass Press-in Inserts.
Special Features
- Threads as per International Go & Not Go Standards.
- Deep Groove for maximum pull out resistance.
- Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the inserts.
- Both blind and through inserts are available.
Knurling Available
- Diamond
- Straight
- Unidirectional
Application
- Instrumentation, Telecommunications, Auto Parts, Electrical Parts and other Plastic Cases Assembly.
Material
- Free Cutting Brass IS 319 Type (I) or
- Free Cutting Brass as per BS 249 Type (I) or
- High Grade Free Cutting Brass.
- Any Special Brass Material Composition as per customers’ requirement.
Thread
- ISO Metric (MM Threads).
- BA, BSW (Inches), UNC, UNF Threads.
- Any as per customize Specification.
Size
- Circumference Diameter 1MM to 800MM with length of any size.
- Apart form standard Inserts, we develop customize Inserts as per technical drawing or other relevant data.
Finish and Coation
- Natural
- Nickle Plated
- Tin Plated
- Any other Coating as per customers’ specification
|
|
