Standard

EN 50262 : 1999

Application

This type of Cable Glands are suitable for indoor and outdoor use, appropriate for single wire armoured, plastic or rubber sheathed cable. Provides grip to the cable with outer and inner seals. Used popularly in most cliamatic conditions. Weatherproof and waterproof.

Ingress Protection

IP 66

Material

Brass

Finish

Plain Brass or Nickel Plated

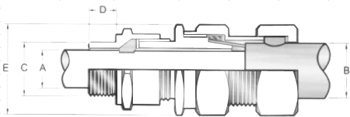

Size

Thread Size 'C'

Thread Length 'D'

Cable Range

MAX 'A'

MAX 'B'

A/F

A/C

20S

M20

15.00

12.00

15.00

24.00

26.80

20L

M20

15.00

14.25

21.00

27.50

30.50

25L

M25

15.00

20.15

26.50

36.60

40.80

32L

M32

15.00

26.50

34.50

45.50

51.00

40L

M40

15.00

32.50

471.00

52.00

59.00

50S

M50

15.00

38.50

46.50

60.50

67.00

50L

M50

15.00

44.50

53.25

69.00

78.50

63S

M63

15.00

52.00

59.50

76.00

84.50

63L

M63

15.00

56.50

65.50

79.50

89.00

75S

M75

15.00

62.00

74.00

79.50

88.50

75L

M75

15.00

68.50

78.50

96.00

108.00
