MANUFACTURER & EXPORTER OF PRECISION BRASS COMPONENTS
Brass Male Female Pillars, Brass Stand - off, Brass Spacer, Brass Distance Bolts


Length / Size:
  • As Per Customer's Designs
Threads:
  • ISO Metric (MM Threads)
  • BA, BSW (Inches), UNC, UNF
  • Any as per Custom Design.
 Material:
  • Free Cutting Brass IS 319 Type (I) or BS 249 Type (I) or High Grade
  • Any Special Brass Material Composition as per customers requirement
Finish and Coating:
  • Natural, Nickle Plated, Tin Plated available for brass male female pillars, brass stand off, brass spacer and brass distance bolts or any coating as per customer specification.

Any kind of brass male female pillars, brass stand-off, brass spacer and brass distance bolts can be developed and supplied exactly as per customer specifications.

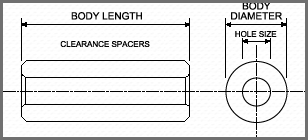

Clearance Spacers

To Clear Thread Size

Diameter

Hole Size

Body Length

M2

4 mm

2.2 mm

3, 4, 5, 6, 7, 8, 9, 10, 11, 12 mm

M2.5

6 mm

2.7 mm

3, 4, 5, 6, 7, 8, 9, 10, 11, 12 mm

M3

6 mm

3.2 mm

3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 20, 25, 30 mm

M4

8 mm

4.3 mm

3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 20, 25, 30 mm

M5

10 mm

5.3 mm

3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 20, 25, 30 mm

Threaded Spacers

Body Size Across Flats (A/F)

Thread

Body Length

4 mm

M2

3, 4, 5, 6, 7, 8, 9, 10, 11, 12 mm

5.5 mm

M2.5

3, 4, 5, 6, 7, 8, 9, 10, 11, 12 mm

5.5 mm

M3

3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 mm

7 mm

M4

3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 mm

8 mm

M5

3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 mm
