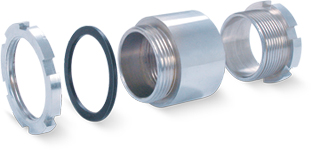

Marine & JIS Type Cable Glands
|
Size |
10 mm to 90 mm |
|
Application |
Outdoor or Indoor for use with all types of braided or
unarmoured Marine electrical cable fittings |
|
Ingress Protection |
IP54 IP66 |
|
Optional Thread |
ISO Metric, NPT, NPS, BSP, BSPT, PG |
|
Finish |
Chrome Finish, Brass Finish, Nickel Finish or as
specified |
|
Material |
Brass BS 2874 CZ121 Pb3 |
|
Sizes |
Metric from 10 mm to 60 mm in JIS, PG 7 to PG 48 in DIN
from M 16 to M 90 in BS |
|
Size |
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
10 |
45.00 |
21.50 |
10.00 |
3/8"
BSP |
11.00 |
5.00 |
28.00 |
22.00 |
4.00 |
|
15 |
50.00 |
27.50 |
15.00 |
1/2" BSP |
11.00 |
5.00 |
31.20 |
26.20 |
4.00 |
|
20 |
53.00 |
33.50 |
20.00 |
3/4"
BSP |
10.00 |
5.00 |
37.00 |
32.00 |
6.00 |
|
25 |
60.00 |
41.50 |
25.00 |
1" BSP |
11.00 |
6.00 |
46.00 |
40.00 |
6.00 |
|
30 |
65.00 |
49.50 |
30.00 |
1.1/4"
BSP |
12.00 |
6.00 |
56.00 |
48.00 |
8.00 |
|
35 |
70.00 |
55.50 |
40.00 |
1.1/2" BSP |
12.00 |
6.00 |
63.000 |
55.00 |
8.00 |
|
40 |
70.00 |
55.50 |
40.00 |
1.1/2"
BSP |
12.00 |
6.00 |
63.00 |
55.00 |
8.00 |
|
45 |
85.00 |
69.50 |
50.00 |
2" BSP |
12.00 |
6.00 |
76.00 |
67.00 |
10.00 |
|
50 |
85.00 |
69.50 |
50.00 |
2"
BSP |
12.00 |
6.00 |
76.00 |
67.00 |
10.00 |
|
55 |
87.00 |
85.50 |
60.00 |
2.1/2" BSP |
12.00 |
6.00 |
95.00 |
86.00 |
10.00 |
|
60 |
88.00 |
85.50 |
60.00 |
2.1/2"
BSP |
12.00 |
6.00 |
95.00 |
86.00 |
10.00 |
|
65 |
100.00 |
99.50 |
70.00 |
3" BSP |
14.00 |
6.00 |
112.00 |
100.00 |
12.00 |
|
70 |
110.00 |
99.50 |
70.00 |
3"
BSP |
14.00 |
6.00 |
112.00 |
100.00 |
12.00 |
Also available in Kit Packaging and also as per the specification.
|
|
