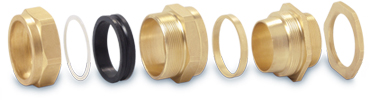

CW Type Cable Glands
|
Size
|
20 mm to 90 mm S & L
|
|
Standard
|
EN 50262 : 1999
|
|
Application
|
For indoor or outdoor use with all types of SWA Cable
|
|
Function
|
Provide for Environmental Seal in the Cable Outer
Sheath,. Also provide mechanical cable retention & electrical continuity.
|
|
Material
|
Brass BS 2874 CZ121 Pb3
|
|
Optional Threads
|
METRIC, NPT, BSP, PG or as specified
|
|
Finish
|
Brass Finish, Nickel Finish, Chrome Finish or as
specified
|
|
Operating Temp.
|
Standard seals -200 to +800 C
|
|
Accessories
|
Matching Accessories available like PVC Shrouds, Lock
Nuts, Earth Tags, REducers, Adaptors, etc. as per the requirement
|
|
Size
|
Thread
Size 'C'
|
Minimum
Length of Thread 'D'
|
Cable
Range
|
|
MM
|
INCH
|
MAX
'A'
|
MAX
'B'
|
|
CW 20S
|
20
|
3/4
|
10
|
11.80
|
17.80
|
|
CW 20L
|
20
|
3/4
|
10
|
14.00
|
20.80
|
|
CW 25S
|
25
|
1
|
10
|
18.00
|
24.00
|
|
CW 25L
|
25
|
1
|
10
|
20.30
|
27.40
|
|
CW 32S
|
32
|
1.1/4
|
10
|
24.50
|
31.00
|
|
CW 32L
|
32
|
1.1/4
|
10
|
26.50
|
34.20
|
|
CW 40S
|
40
|
1.1/2
|
13
|
30.40
|
38.50
|
|
CW 40L
|
40
|
1.1/2
|
13
|
33.20
|
41.00
|
|
CW 50S
|
50
|
2
|
13
|
40.00
|
47.00
|
|
CW 50L
|
50
|
2
|
13
|
44.00
|
53.50
|
|
CW 63S
|
63
|
2.1/2
|
14
|
50.00
|
59.00
|
|
CW 63L
|
63
|
2.1/2
|
13.50
|
56.00
|
66.00
|
|
CW 75S
|
75
|
3
|
15
|
63.50
|
73.00
|
|
CW 75L
|
75
|
3
|
15
|
69.00
|
79.00
|
Also available in Kit Packaging and also as per the specification.
|
