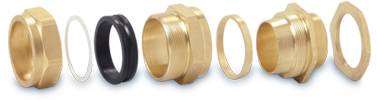

CW NPT Type Cable Glands
Normal
0
false
false
false
EN-US
X-NONE
X-NONE
MicrosoftInternetExplorer4
|
Size |
20 mm to 90 mm S & L |
|
Standard |
EN 50262 : 1999 |
|
Application |
For indoor or outdoor use with all types of SWA Cable |
|
Function |
Provide for Environmental Seal in the Cable Outer Sheath.
Also provide mechanical cable retention & electrical continuity. |
|
Material |
Brass BS 2874 CZ121 Pb3 |
|
Optional Threads |
METRIC, NPT, BSP, PG or as specified |
|
Finish |
Brass Finish, Nickel Finish, Chrome Finish or as
specified |
|
Operating Temp. |
Standard seals -200 to +800 C |
|
Accessories |
Matching Accessories available like PVC Shrouds, Lock
Nuts, Earth Tags, Reducers, Adaptors, etc. as per the requirement |
Technical Data:
Normal
0
false
false
false
EN-US
X-NONE
X-NONE
MicrosoftInternetExplorer4
|
Size |
Size |
Minimum
Length of Thread 'D' |
Cable
Range |
|
MM |
THREAD
NPT |
MAX
'A' |
MAX
'B' |
|
CWNPT
20S |
20 |
1/2" |
10 |
11.80 |
17.80 |
|
CWNPT
20L |
20 |
1/2" |
10 |
14.00 |
20.80 |
|
CWNPT
25S |
25 |
3/4" |
10 |
18.00 |
24.00 |
|
CWNPT
25L |
25 |
3/4" |
10 |
20.30 |
27.40 |
|
CWNPT
32S |
32 |
1" |
10 |
24.50 |
31.00 |
|
CWNPT
32L |
32 |
1" |
10 |
26.50 |
34.20 |
|
CWNPT
40S |
40 |
1.1/4" |
13 |
30.40 |
38.50 |
|
CWNPT
40L |
40 |
1.1/4" |
13 |
33.20 |
41.00 |
|
CWNPT
50S |
50 |
1.1/2" |
13 |
40.00 |
47.00 |
|
CWNPT
50L |
50 |
1.1/2" |
13 |
44.00 |
53.50 |
|
CWNPT
63S |
63 |
2" |
14 |
50.00 |
59.00 |
|
CWNPT
63L |
63 |
2" |
13.50 |
56.00 |
66.00 |
|
CWNPT
75S |
75 |
2.1/2" |
15 |
63.50 |
73.00 |
|
CWNPT
75L |
75 |
2.1/2" |
15 |
69.00 |
79.00 |
Also available in Kit Packaging and also as per the specification.
|
|
|
|
|
|
|
|
|
|
 |
